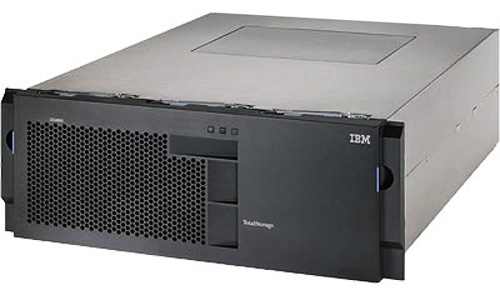

IBM DS4800
| 整機信息 | |
| 名稱 | IBM System Storage DS4800 Storage Subsystem |
| 型號 | 1815-80A/1815-82A/1815-84A/1815-88A |
| 機架空間 | 4U |
| 控制器信息 | Dual active |
| 整機控制器緩存 | 1815-82A 帶有4 GB 的緩存， 1815-84A 帶有 8 GB 的緩存，1815-88A帶有 16 GB 的緩存。 |
| 控制器是否有電池 | 是 |
| 接口 | 光纖通道 Point. |
| 硬盤插槽數量 | 16 |
| 支持的硬盤 | 支持最多 16個 EXP100 SATA-only 盤柜共 224 塊磁盤. 這允許你使用250 GB SATA 磁盤，安裝最多達56 TB的存儲容量 ；支持最多16個 EXP710 FC-only 盤柜共 224 disks. 這允許你使用300 GB FC 磁盤，安裝最多 67.2 TB 的存儲容量. |
| 支持Raid類型 | 支持 RAID 0, 1, 3, 5, 和10. |
| 發布日期 | |
| 下架日期 | |
| 存儲分區 | 支持 8, 16, or 64 host 存儲分區（storage partitions） |
| 可用性 | 容災、RAID、冗余電源/風扇、熱插拔驅動器、 雙控制器、并行微碼更新功能、雙路徑驅動器。 |
| SAN支持 | 直接、FC-AL、交換結構。 |
| 其他特性 | |
| 產品尺寸 | 174.50mm H x 481.75mm W x 634.92mm D |
| 產品重量 | 36.38公斤 (80.2磅). |
| 管理軟件 | IBM System Storage DS4000 Storage Manager Version 9.23. |
| 存儲擴展柜 | EXP100,EXP700,EXP810,EXP710 |
| 配件信息 | ||
| FC號 | PN號 | 描述 |
| 適配卡 | ||
| 2104 |
24P0960 24P0961 24P8174 |
DS4300/4000 Host Bus Adpater(withdrawn) |
| 2105 | 39M5894 | DS4000 4Gbps Single-Port FC PCI-X cchba |
| 2106 | 39M5895 | DS4000 4Gbps Dual-Port FC PCI-X cchba |
| 電源 | ||
|
17P8821 23R1496 |
DS4800 power supply and fan unit | |
| 電池 | ||
|
22R0532 44X2480 23R0532 |
DS4800 interconnect-battery unit (with plate and without batteries) | |
|
22R4873 22R4875 23R0518 23R0534 |
DS4800 battery | |
| 22R4874 | DS4800 battery cover/plate with 4 screws | |
| 許可協議 | ||
| 2 | Incomplete System Unit-AAP | |
| 7301 | DS4500/4800 FlashCopy Activation(Withdraw) | |
| 7304 | DS4500/4800 Flash/Volume Copy Activation(Withdraw) | |
| 7305 | DS4500/4800 Enhanced Remote Mirror Activation(Withdraw) | |
| 7306 | DS4500/4800 FC/SATA Enhanced Intermix Activation(Withdraw) | |
| 7307 | 22R6621 | DS4800 Mod 80 Enhanced Remote Mirror Act |
| 7343 | FlashCopy 4-16 FC Upgrade | |
| 7349 | DS4800 Mod80 Enhanced Performance Activation | |
| 7386 | DS4800 8-14 Storage Exps Attachment | |
| 7700 | DS4700/4800 Windows Host Kit | |
| 7701 | 24P8068 | DS4300/4700/4800 Linux/Intel Host Kit (Withdrawn) |
| 7702 | 24P8069 | DS4300/4700/4800 Novell Network Host Kit (Withdrawn) |
| 7703 | 24P8070 | DS4300/4800 VMware Host Kit (Withdrawn)/DS4700 Vmware ESX Host Kit |
| 7711 | 24P8072 | DS4300/4800 AIX Host Kit (Withdrawn)/DS4700 AIX/VIOS Host Kit |
| 7712 | 24P8073 | DS4300/4800 Sun Host Kit (Withdrawn)/DS4700 SUN Host Kit |
| 7713 | 24P8074 | DS4300/4800 HP-UX Host Kit (Withdrawn) |
| 7714 | 25R0091 | DS4300/4800 Linux on Power Host Kit (Withdrawn)/DS4700 Linux on Power Host Kit |
| 8870 | DS4800 8 Storage Partitions Activation(Withdrawn) | |
| 8871 | DS4800 16 Storage Partitions Activation(Withdrawn) | |
| 8872 | DS4800 64 Storage Partitions Activation(Withdrawn) | |
| 8873 | DS4800 32 Storage Partitions Activation(Withdrawn) | |
| 8874 | DS4800 128 Storage Partitions Activation(Withdrawn) | |
| 8875 | DS4800 256 Storage Partitions Activation(Withdrawn) | |
| 8876 | DS4800 512 Storage Partitions Activation(Withdrawn) | |
| 控制器 | ||
|
23R0535 39M5878 |
DS4800 RAID controller, 2 GB memory, Model 82A/H | |
| 23R0536 | DS4800 RAID controller, 4 GB memory, Model 84A/H | |
|
23R0537 44X2428 |
DS4800 RAID controller, 8 GB memory, Model 88A/H | |
|
23R1983 44X2424 |
DS4800 RAID controller, 2 GB memory, Model 80A/H | |
| 光纖模塊 | ||
| 2410 |
26K7941 22R6443 77P2964 |
SW 4Gbps SFP transceiver pair |
| 線纜 | ||
| 19K1268 | Cable, FRU SC-LC Adapter | |
| 36L8886 | Line Cord Jumper, High Voltage | |
| 6952300 | 9’ Line Cord | |
| 5601 |
19K1247 19K1265 39M5696 39M5699 |
1M LC-LC Fibre Optic Cable (Withdrawn) |
| 5605 |
19K1248 19K1266 39M5697 39M5700 |
5M LC-LC Fibre Optic Cable (Withdrawn) |
| 5625 |
19K1249 19K1267 39M5698 39M5701 |
25M LC-LC Fibre Optic Cable (Withdrawn) |
| 其它 | ||
| 22R4271 | DS4800 bezel assembly | |
| 22R4839 | DS4800 mounting rail assembly | |
|
23R1980 23R1982 23R1981 22R4272 22R4491 22R4493 22R4494 22R4495 22R4496 23R0531 23R0529 23R0530 |
DS4800 chassis | |
| 24P0950 | LC wrap plug assembly |
