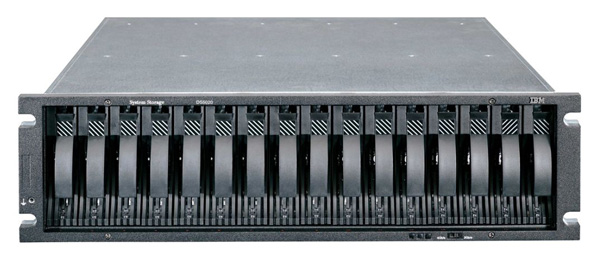

IBM DS5020
| 整機信息 | |
| 名稱 | IBM System Storage DS5020 Storage Subsystem |
| 型號 | 1814-20A |
| 機架空間 | 3U |
| 控制器信息 | Dual active. |
| 整機控制器緩存 | 4GB Battery-backed. |
| 控制器是否有電池 | 是 |
| 接口 | Four 8GBps Fibre Channel, Eight 8GBps Fibre Channel, Four 8GBps Fibre Channel, Four 1GBps iSCSI. |
| 硬盤插槽數量 | 16 |
| 支持的硬盤 | 4GBps Fibre Channel/SED: 15k RPM – 300GB, 450GB, 600GB, 4GBps SATA: 7.2K RPM–1 TB and 2 TB, Gbps FC-SAS: 10k RPM–600GB, SSD: 73GB and 300GB. |
| 支持Raid類型 | 0, 1, 3, 5, 6, 10 |
| 發布日期 | 2009/1/4 |
| 下架日期 | |
| 存儲分區 | |
| 可用性 | 雙控制器，支持熱插拔。 |
| SAN支持 | |
| 其他特性 | |
| 產品尺寸 | 130.3mm H x 447.0mm W x 563.8mm D |
| 產品重量 | |
| 管理軟件 | IBM System Storage DS® Storage Manager version 10.xx. |
| 存儲擴展柜 | EXP520 |
| 配件信息 | ||
| FC號 | PN號 | 描述 |
| 硬盤 | ||
| 4000 | 43W9715 | 3 Gbps SATA, 750 GB HS, 7200 RPM drive module |
| 4001 | 44X2459 | 3 Gbps SATA, 1 TB HS, 7200 RPM drive module |
| 4002 | 3 Gbps SATA, 2 TB HS, 7200 RPM drive module | |
| 4200 | 40K6823 | 4 Gbps FC, 146 GB/15K drive module |
| 4201 | 42D0417 | 4 Gbps FC, 300 GB/15K drive module |
| 4202 | 44X2451 | 4 Gbps FC, 450 GB/15K drive module |
| 4203 | 59Y5336 | 4 Gbps FC, 600 GB/15K drive module |
| 4400 | 44E5638 | 4 Gbps FC, 146.8 GB/15K drive module, full disk encryption |
| 4401 | 44E5642 | 4 Gbps FC, 300 GB/15K drive module, full disk encryption |
| 4402 | 44E5646 | 4 Gbps FC, 450 GB/15K drive module, full disk encryption |
| 4403 | 59Y5341 | 4 Gbps FC, 600 GB/15K drive module, full disk encryption |
| 5590 | 73GB Solid State Drive | |
| 5591 | 300GB Solid State Drive | |
| 6112 | 600GB/10K FC-SAS DDM | |
| 6122 | 600GB/10K FC-SAS FDE DDM | |
| 適配卡 | ||
| 2080 | 2-Dual 8Gbps Host Ports | |
| 2081 | 2-Dual 1Gbps iSCSI Ports | |
| 電源 | ||
|
42D3346 42D3314 |
AC power supply and fan unit FRU, 600 W (models that are NEBs Level 3/Telco compliant) | |
|
59Y5501 59Y5502 |
Power Supply Canister AC version | |
| 電池 | ||
| 59Y5151 | Battery | |
| 59Y5260 | DS5020 battery | |
| 許可協議 | ||
| 2070 | Add 2GB Cache Memory per Controller | |
| 7393 | 33-64 Disk Drive Attachment | |
| 7394 | 65-112 Disk Drive Attachment | |
| 7401 | FlashCopy | |
| 7404 | Flash/VoumeCopy | |
| 7405 | Enhanced Remote Mirroring | |
| 7410 | Disk Encryption Activation | |
| 7414 | Attach EXP810 to DS5020 Activation | |
| 7801 | DS5020 windows Host Kit | |
| 7802 | DS5020 Linux/Intel Host kit | |
| 7804 | DS5020 Vmware/ESX Host kit | |
| 7805 | DS5020 AIX/VIOS Host kit | |
| 7806 | DS5020 Sun Host kit | |
| 7807 | DS5020 HPUX Host kit | |
| 7808 | DS5020 Linux for Power Host kit | |
| 8700 | DS5020 2 Storage Partitions | |
| 8701 | DS5020 4 Storage Partitions | |
| 8702 | DS5020 8 Storage Partitions | |
| 8703 | DS5020 16 Storage Partitions | |
| 8704 | DS5020 32 Storage Partitions | |
| 8705 | DS5020 64 Storage Partitions | |
| 8706 | DS5020 128 Storage Partitions | |
| 控制器 | ||
| 59Y5251 | Controller, 1 GB memory, two standard 8 Gbps FC host ports, two standard 4 Gbps FC drive channel ports | |
| 59Y5252 | Controller, 1 GB memory, two standard 8 Gbps FC host ports, one optional 2-port 8 Gbps FC host card, two standard 4 Gbps FC drive channel ports | |
| 59Y5254 | Controller, 1 GB memory, two standard 8 Gbps FC host ports, one optional 2-port 1 GB iSCSI host card, two standard 4 Gbps FC drive channel ports | |
| 59Y5256 | Controller, 2 GB memory, two standard 8 Gbps FC host ports, two standard 4 Gbps FC drive channel ports | |
| 59Y5258 | Controller, 2 GB memory, two standard 8 Gbps FC host ports, one optional 2-port 8 Gbps FC host card, two standard 4 Gbps FC drive channel ports | |
| 59Y5259 | Controller, 2 GB memory, two standard 8 Gbps FC host ports, one optional 2-port 1 GB iSCSI host card, two standard 4 Gbps FC drive channel ports | |
| 光纖模塊 | ||
| 2410 |
26K7941 22R6443 77P2964 |
SW 4Gbps SFP transceiver pair |
| 3620 |
69Y2876 49Y4123 |
8Gb FC SW SFP Transceivers (Pair) |
| 線纜 | ||
| 39M5081 | AC power cord, 2.8 m | |
| 39M5377 | Power cord, rack jumper, 2.8-meter | |
| 39M5942 | Serial cable adapter | |
| 5601 |
19K1247 19K1265 39M5696 39M5699 |
1M LC-LC Fibre Optic Cable (Withdrawn) |
| 5605 |
19K1248 19K1266 39M5697 39M5700 |
5M LC-LC Fibre Optic Cable (Withdrawn) |
| 5625 |
19K1249 19K1267 39M5698 39M5701 |
25M LC-LC Fibre Optic Cable (Withdrawn) |
| 5810 | 68Y7501 | OM3 Fiber Cable 10m LC-LC multimode |
| 5818 | 68Y7502 | 4 Pack OM3Fiber Cable 10m LC-LC mm |
| 其它 | ||
| 1818-RS3 | DS Remote Support Manager Model RS3 | |
| 39M5914 | LC wrap plug assembly | |
| 42D3315 | Empty drive filler panel | |
| 59Y5249 | Cage assembly | |
| 2011 | Air Filter Bezel |
