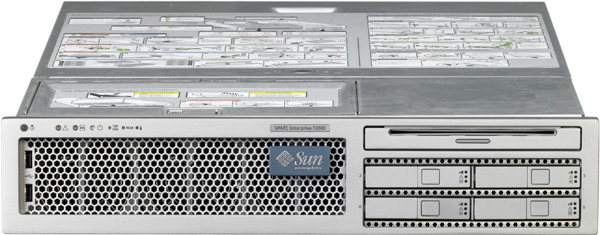

Sun T2000
| 整機信息 | |
| 機架類型 | 機架式 |
| 高度 | 2U |
| 處理器 | 一個 UltraSPARC T1 多內核處理器（4 個或 8 個內核） |
| 體系結構 |
SPARC V9 體系結構，帶有 ECC 保護 平臺組：sun4v 平臺名稱： SUNW,SPARC-Enterprise-T2000 |
| 內存 |
16 個插槽，可以安裝以下幾種類型的具有 ECC 功能的DDR-2 400MHz DIMM 512MB （最大 8GB） 1GB （最大 16GB） 2GB （最大 32GB） 4GB （最大 64GB） |
| 內置硬盤驅動器 | 1-4 個外形規格為 2.5 英寸的 SFF SAS 73 GB、10k rpm 驅動器（可熱插拔） |
| 其他內置外圍設備 | 1 個 Slimline DVD-R/CD-RW 設備 |
| USB 端口 | 4 個 USB 1.1 端口（前后面板各兩個） |
| 以太網端口 | 4 個端口， 10/100/1000 Mb 自適應 (Autonegotiating) |
| 冷卻系統 | 3 個熱交換冗余系統風扇， 1 個鼓風機單元 |
| PCI 接口 |
3 個 PCI Express 插槽，這些插槽可支持以下規格的卡： 窄板型 (Low-profile) x1、x4 和 x8 寬度 12 伏和 3.3 伏（如 PCI Express 規范所定義） 2 個 PCI-X 插槽，這些插槽可支持以下規格的卡： 64 位， 133 MHz 窄板型 (Low-profile) 3.3 伏（也提供 5 伏，如 PCI-X 規范所定義，并使用 3.3V 外形規格連接器） |
| 電源 | 2 個熱交換冗余電源單元 (power supply unit, PSU) |
| 遠程管理 | 具有一個串行 10/100 Mb 以太網端口的 ALOM CMT 管理控制器 |
| 固件 |
系統固件包括以下組成部分： OBP：支持系統設置和開機自檢 (power-on self test, POST) ALOM CMT：用于進行遠程管理 |
| 密碼系統 | 硬件輔助加強型密碼系統 |
| 操作系統 | 磁盤 0 預裝了 Solaris 10 操作系統（如果隨系統一起購買了硬盤驅動器）。 |
| 尺寸 | 425x621x89mm |
| 重量 | 18.2kg (40lbs.) |
| 配件信息 | ||
| 型號 | PN號 | 描述 |
| CPU | ||
| 541-2142 | 0MB 8-Core 1.0GHz System Board | |
| 541-2192 | 0MB 8-Core 1.2GHz System Board | |
| 541-2226 | 0MB 4-Core 1.0GHz System Board | |
| 541-2449 | 0MB 8-Core 1.4GHz System Board | |
| 系統板 | ||
| 501-7501 | CPU/Memory Board | |
| 501-7823 | I/O Board | |
| 501-7849 | Service Processor | |
| 541-2448 | System Board Assembly w/o UltraSPARC T1 | |
| 內存 | ||
| 370-6207 | 512MB DDR2 DIMM, 533 MHz, RoHS:Y | |
| 370-6208 | 1GB DDR2 DIMM, 533 MHz, RoHS:Y | |
| 370-6209 | 2GB DDR2 DIMM, 533 MHz, RoHS:Y | |
| 370-6210 | 4GB DDR2 DIMM, RoHS:Y | |
| SEKX2A1Z | 1GB (2 x 512MB DDR2) Memory Expansion Kit | |
| X7800A | 1GB (2 × 512MB DDR2) - Includes 2 (370-6207) DIMM modules | |
| X7801A | 2GB (2 × 1GB DDR2) Memory - Includes 2 (370-6208) DIMM modules | |
| X7802A | 4GB (2 x 370-6209 2GB) RoHS:Y Memory Kit | |
| X7803A | 8GB (2 × 4GB DDR2) Memory - Includes 2 (370-6210) DIMM modules | |
| 硬盤 | ||
| 390-0448 | Seagate ST9146803SS [ST914603SSUN146G](146GB - 10000 RPM - SAS Disk) | |
| 540-7307 | 73GB 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks | |
| 540-7777 | 146GB 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks | |
| SEPX3A11Z | 390-0213 | Seagate ST973401SS (73GB - 10000 RPM SAS) Disk Drive |
| SEPX3A11Z | 390-0323 | Seagate ST973402SS (73GB - 10000 RPM SAS) Disk Drive |
| SEPX3A11Z | 390-0374 | Fujitsu MBB2073RC (73.4GB - 10000 RPM SAS) Disk Drive |
| SEPX3A11Z | 540-7307 | 73GB 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks |
| SEPX3C11Z | 390-0324 | Seagate ST9146802SS (146.8GB - 10000 RPM SAS) Disk Drive |
| SEPX3C11Z | 390-0375 | Fujitsu MBB2147RC (146.8GB - 10000 RPM SAS) disk Drive |
| SEPX3C11Z | 390-0448 | Seagate ST9146803SS (146.8GB - 10000 RPM SAS) Disk Drive |
| SEPX3C11Z | 540-7777 | 146GB 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks |
| XRA-FC1CB-146G10K | 540-5459 | Disk Assembly with 1 bracket, 1 of the following plates, and 1 of the following disks: |
| XRA-SS2CD-73G10KZ | 390-0213 | Seagate ST973401SS (73GB - 10000 RPM SAS) Disk Drive, RoHS:Y |
| XRA-SS2CD-73G10KZ | 390-0285 | Fujitsu MAY2073RC (73GB - 10000 RPM SAS) Disk Drive, RoHS:Y |
| XRA-SS2CD-73G10KZ | 390-0323 | Seagate ST973402SS (73GB - 10000 RPM SAS) Disk Drive, RoHS:Y |
| XRA-SS2CD-73G10KZ | 390-0374 | Fujitsu MBB2073RC (73.4GB - 10000 RPM SAS) Disk Drive, RoHS:Y |
| XRA-SS2CD-73G10KZ | 390-0376 | Hitachi HUC101473CSS300 (73.4GB - 10000 RPM SAS) Disk Drive, RoHS:Y |
| XRA-SS2CD-73G10KZ | 540-6611 | 73GB 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets, RoHS:Y |
| XRB-SS2CD-146G10KZ | 390-0324 | Seagate146GB - 10000 RPM |
| XRB-SS2CD-146G10KZ | 390-0375 | Fujitsu 146GB - 10000 RPM |
| XRB-SS2CD-146G10KZ | 390-0377 | Hitachi 146GB - 10000 RPM |
| 硬盤背板 | ||
| 501-7755 | 4-Slot Disk Backplane | |
| RAID卡 | ||
| SG-XPCI1SCSI-LM320 | 375-3255 | PCI/PCI-X Single Ultra320 SCSI Adapter |
| SGXPCIESAS-R-EXT-Z | 375-3537 | 8-Port SAS RAID External HBA |
| SCSI卡 | ||
| SGSPCI1SCSILM320-Z | 375-3366 | PCI/PCI-X Single Ultra320 SCSI Adapter |
| SGXPCIESAS-R-EXT-Z | 375-3537 | 8-Port SAS RAID External HBA, RoHS:Y |
| 網卡 | ||
| X1027A-Z | 501-7283 | PCI Express Dual 10-Gigabit Ethernet Fiber |
| X4150A | 501-6719 | GigaSwift Ethernet UTP (GCS) |
| X4150A-2 | 501-7415 | GigaSwift Ethernet UTP (GCS) |
| X4151A | 501-6762 | GigaSwift Ethernet MMF (GFS) |
| X4151A-2 | 501-7430 | GigaSwift Ethernet MMF (GFS) |
| X4447A-Z | 501-7606 | Quad Gigabit Ethernet UTP x8 PCI Express Card |
| X5544A | 501-7036 | 10Gb/sec PCI-X Ethernet Adapter |
| X5544A-4 | 501-7413 | 10Gb PCI-X Ethernet Adapter, no transceiver Kit, |
| X7280A-2 | 371-0905 | PCI-E Dual Gigabit Ethernet UTP |
| X7281A-2 | 371-0904 | PCI Express Dual Gigabit Ethernet MMF |
| 適配卡 | ||
| SG-XPCI8SAS-E-Z | 375-3488 | 3Gb PCI-X SAS 8-Port Host Adapter, RoHS:Y |
| X1235A | 375-3260 | PCI-X Dual Port 4x InfiniBand Host Channel Adapter - Low Profile |
| X1236A-Z | 375-3382 | Dual port 4x PCI Express Infiniband Host Channel Adapter - Low Profile |
| X1333A-4 | 375-3418 | Infiniband PCI-X Card |
| X6000A | 375-3424 | PCI Express Sun Crypto Accelerator 6000 |
| 顯卡 | ||
| X3000A | 375-3545 | XVR-300 x8 Graphics Accelerator Kit |
| X3777 | 375-3433 | XVR-200 Graphics Accelerator |
| 光纖卡 | ||
| SG-XPCI1FC-EM2 | 375-3304 | 2Gb PCI-X Single FC Host Adapter |
| SG-XPCI1FC-EM2 | 375-3305 | 2Gb PCI-X Dual FC Host Adapter |
| SG-XPCI1FC-EM4-Z | 375-3398 | 4Gb PCI-X Single FC Host Adapter |
| SG-XPCI1FC-QF2 |
595-6425 375-3102 |
2GB PCI Single FC Network Adapter |
| SG-XPCI1FC-QF4 | 375-3354 | 4Gb PCI-X Single FC Host Adapter |
| SG-XPCI1FC-QL2 | 375-3383 | 2Gb PCI-X Single FC Host Adapter |
| SG-XPCI2FC-EM4-Z | 375-3399 | 4Gb PCI-X Dual FC Host Adapter |
| SG-XPCI2FC-QF2-Z | 375-3363 | 2Gb PCI Dual FC Host Adapter Kit |
| SG-XPCI2FC-QF4 | 375-3294 | 4Gb PCI-X Dual FC Host Adapter |
| SG-XPCIE1FC-EM4 | 375-3396 | 4Gigabit/Sec PCI Express Single FC Host Adapter |
| SG-XPCIE1FC-EM8-Z | 371-4295 | 8Gigabit/Sec PCI Express Single Host Adapter |
| SG-XPCIE1FC-QF4 | 375-3355 | 4Gigabit/Sec PCI Express Single FC Host Adapter |
| SG-XPCIE1FC-QF8-Z | 371-4324 | 8Gigabit/Sec PCI Express Single FC Host Adapter |
| SG-XPCIE2FC-EM4 | 375-3397 | 4Gigabit/Sec PCI Express Dual FC Host Adapter |
| SG-XPCIE2FC-EM8-Z | 371-4306 | 8Gigabit/Sec PCI Express Dual FC Host Adapter |
| SG-XPCIE2FC-QF4 | 375-3356 | 4Gigabit/Sec PCI Express Dual FC Host Adapter |
| SG-XPCIE2FC-QF8-Z | 371-4325 | 8Gigabit/Sec PCI Express Dual FC Host Adapter |
| 電源 | ||
| 300-1735 | 450 Watt Power Supply, Power One | |
| 300-1817 | 450 Watt Power Supply, Tyco | |
| 300-2110 | 450 Watt Power Supply, Astec | |
| 電池 | ||
| 150-1204 | 3V Lithium battery | |
| 光驅 | ||
| 390-0251 | Slimline 8X DVD-ROM / 24X CD-Writer | |
| 風扇 | ||
| 541-0275 | CPU fan | |
| 541-0645 | Rear Fan Tray, RoHS:Y | |
| 線纜 | ||
| 530-3361 | CPU/Memory to I/O Board Cable | |
| 530-3365 | DVD Cable | |
| 其它 | ||
| 375-3104 | Paddleboard | |
| 501-6916 | LED/Switch Board (A65/A87) | |
| 501-6978 | Front I/O Board w/Cover Interlock Switch | |
| 541-1474 | DVD Cable Assembly | |
