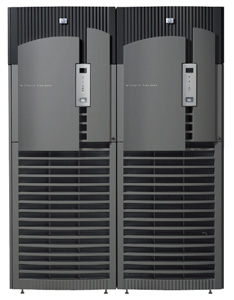

HP 9000 Superdome
| 技術規格 | |||
| 配置選項 | 16路處理器 | 32路處理器 | 64路處理器 |
|
PA-RISC處理器 PA-8900處理器(處理器/核)的數量 4-CPU單元板的數量 |
2p/4c -16p/32c CPU 1-4 |
2p/4c -32p/64c CPU 1-8 |
6p/12c -64p/128c CPU 3-16 |
| 最小/最大內存容量 | 8 GB/512 GB | 8 GB/1 TB | 24 GB/2 TB |
|
分區 硬分區數 虛擬分區 |
4 32 |
8 64 |
16 128 |
| 熱插拔PCI-X I/O插槽總數 |
48個插槽(8個插槽為2,133 MB/s, 24個插槽為1,066 MB/s, 16個插槽為533 MB/s) |
48/96個插槽1 (16個插槽為2,133 MB/s, 48個插槽為1,066 MB/s, 32個插槽為533 MB/s) |
96/192個插槽1 (32個插槽為2,133 MB/s, 96個插槽為1,066 MB/s, 64個插槽為533 MB/s) |
| 熱插拔、冗余電源(包括N+1) | 4 | 6 | 12 |
|
帶寬 主內存 峰值帶寬 持續帶寬 |
68.3 GB/s 64 GB/s |
136.5 GB/s 128 GB/s |
273.1 GB/s 256 GB/s |
| 每單元Crossbar吞吐量 | 27.3 GB/s | 27.3 GB/s | 27.3 GB/s |
| 單元控制器到I/O子系統(峰值)，每I/O底盤(chassis) | 7.7 GB/s | 7.7 GB/s | 7.7 GB/s |
|
風扇 I/O風扇 熱插拔、冗余風扇(包括N+1) |
5 4 |
5 4 |
10 8 |
| 支持的操作系統 | HP-UX 11i v1、v22、v33，帶惠普虛擬服務器環境(有關鍵任務、企業或基礎操作環境可供選擇) | ||
|
高可用性 標配服務器特性 |
動態CPU和內存分配/隔離 雙內存芯片備用技術 熱插拔單元板 熱插拔風扇 所有CPU、高速緩存、內存和I/O路徑上的檢錯和糾錯(ECC) 在線添加和更換PCI-X I/O卡 冗余電源輸入，實現雙網格連接 N+1熱更換風扇和電源 熱備用即時增容CPU功能 硬分區(nPar) |
||
| 惠普即時增容 | CPU與內存(單元級) | ||
| 惠普虛擬服務器環境(VSE) | 工作負載管理、分區、可用性軟件以及公用定價(可選) | ||
| 配件信息 | |
| PN號 | 描述 |
| CPU | |
| 263635-001 | ML350T02 G2 1.266GHz 512KB 256MB server array (United States) |
| 266241-001 | ML350T02 1.400GHz 512KB 128MB M1 server (United States) |
| 267124-001 | ML350T02 G2 1.40GHz 512KB 256MB array tower (United States) |
| 290558-001 | Intel Xeon processor - 2.40GHz (Prestonia, 400MHz front side bus, 512KB ATC cache, PPGA-INT3 socket, 603-pin) - Includes heatsink |
| 301018-001 | Intel Xeon processor - 2.0GHz (Prestonia, 512KB cache, 400-MHz front side bus) |
| 301019-001 | Processor - 2.2GHz (512KB cache) |
| 系統板 | |
| 292234-001 | System I/O board with processor cage |
| 292235-001 | Power Supply Backplane Board |
| 452372-001 | PCIe, dual-port, DDR, 4X board |
| A3453-69214 | System board - Includes all interconnecting board slots |
| A5201-60102 | Right System Backplane (RSB3) - Includes the LSB, four XBC (TOGO), and six ASICS covers |
| A5201-60218 | Single Board Computer Hub (SBCH) |
|
A5201-69113 A5201-62128 |
Module assembly - Includes single board computer (SBC) and single board computer hub (SBCH3) |
| 內存 | |
| 261585-041 | 1.0GB, SDRAM DIMM memory module - PC2100 DDR-266MHz, ECC, 1.2-inch registered |
| 300699-001 | 256MB, 266MHz, PC2100, registered ECC DDR SDRAM DIMM memory module - 1.2-inch |
| 300700-001 | 512MB, 266 MHz, PC-2100, registered DDR SDRAM DIMM buffered memory module |
| 300701-001 | 1.0GB, 266MHz, PC2100, registered ECC DDR SDRAM DIMM memory module - 1.2-inch |
| 300702-001 | 2.0GB, 266MHz, PC2100, registered ECC DDR SDRAM DIMM memory module - 1.2-inch |
|
309521-001 309521-001N |
128MB battery backed write cache (BBWC) memory board - 72-bit, DDR memory |
| 309522-001 | 256MB battery backed write cache (BBWC) memory board - 72-bit, DDR - Includes battery |
| 378202-001 | 512MB battery backed write cache (BBWC) memory board - 72-bit, DDR - Includes battery |
| A5198-67001 | 512MB Memory dimm |
| A5198-69101 | 512MB high-density SyncDRAM DIMM memory |
| A5198A | HP 2 GB High-Density SyncDRAM Memory Module - Includes four 512MB SDRAM DIMM modules |
| SCSI卡 | |
|
309520-001 309520-001N |
128MB Smart Array 6402 Ultra320 SCSI controller - Two internal or two external Ultra320 SCSI channels - 133MHz PCI-X interface with RAID XOR engine - Does not include cache memory module or dual channel daughter board |
| 309523-001 | Dual channel Ultra320 SCSI PC board - Optional daughter board which adds two more channels to Smart Array 6402 controller - Replacement for Smart Array 6404 daughter board |
| A4800-69002 | Single port Ultra Wide Differential SCSI-2 PCI card - Has one external 68-pin high density connector and one internal 68-pin high density connector |
| A4800A | Single port PCI fast/wide differential (FWD) SCSI-2 adapter - Has one external high density 68 pin connector and one internal high density 68 pin connector - Single port PCI FWD High Voltage Differential SCSI-2 adapter - has one external High Density 68 p |
| A5149-69101 | PCI Ultra2 Low Voltage Differential SCSI adaptor - Has one external Very High Density 68-pin connector (thumbscrews) and one internal High Density 68-pin connector (latch/clip) |
| A5149A | PCI Ultra2 Low Voltage Differential SCSI adapter - Has one external very high density 68 pin connector with thumbscrews and one internal high density 68 pin connector with latch/clips |
| A5149AR | PCI Ultra2 Low Voltage Differential SCSI adapter - Has one external very high density 68 pin connector with thumbscrews and one internal high density 68 pin connector with latch/clips |
| A5150-69201 | Dual port PCI Ultra2 low voltage differential SCSI adapter - Has two external very high density 68 pin connectors and two internal high density 68 pin connectors |
| A5150A | Dual port PCI Ultra2 low voltage differential SCSI adapter - Has two external very high density 68 pin connectors and two internal high density 68 pin connectors |
| A5159-69001 | Dual port PCI Fast Wide High Voltage Differential SCSI-3 adapter - Has two external very high density 68-pin connectors and two internal high density 68-pin connectors - For HP-UX operating system |
| A5159-69101 | Dual channel Fast Wide Differential SCSI adapter board - Has two 68-pin very high density external connectors, and two 68-pin high density internal connectors - For HP-UX operating system |
| A5159A | Dual port PCI Fast Wide High Voltage Differential SCSI-3 adapter - Has two external very high density 68-pin connectors and two internal high density 68-pin connectors - For HP-UX operating system |
| A5159B | Dual channel Fast Wide Differential SCSI adapter board - Has two 68-pin very high density external connectors, and two 68-pin high density internal connectors - For HP-UX operating system |
| 網卡 | |
| A3738-69001 | 10/100 Base-T LAN PCI Ethernet network interface card |
| A3738A | 10Base-T/100Base-TX PCI LAN adapter - Has AUI, BNC, and RJ-45 connectors - LAN Adapter - 10/100Base-TX PCI LAN adapter with one port, but with three connectors AUI, BNC, and RJ-45 |
| A4926-60001 | LAN adapter - 1000Base-SX PCI Gigabit Ethernet LAN adapter - Supports all PCI bus configurations |
| A4926A | LAN adapter - 1000Base-SX PCI Gigabit Ethernet LAN adapter - Supports all PCI bus configurations |
| A4929-69001 | LAN adapter - 1000Base-T PCI Gigabit Ethernet LAN adapter - Supports all PCI bus configurations |
| A4929A | LAN adapter - 1000Base-T PCI Gigabit Ethernet LAN adapter - Supports all PCI bus configurations |
| 適配卡 | |
| 380299-B21 | InfiniBand 4X PCI-X dual-port Host Channel Adapter (HCA) |
| 391918-001 | InfiniBand (IB) Host Channel Adapter (HCA) 4X SDR PCI-X dual-port module card |
| 5183-2684 | Adapter for fiber-optic short wave multimode interface cable - 50um core, 125um cladding - Female SC connectors |
| A3739-69002 | FDDI LAN PCI network adaptor board |
| 顯卡 | |
| 30-10119-02 | ATI RADEON 7500 graphics controller - 64MB DDR SDRAM memory, 350MHz RAMDAC |
| 光纖卡 | |
| 366027-001 | PCI-X to Fibre Channel Host Bus Adapter (HBA) - 2GB/s, 133MHz, 64-bit, single channel - For use with 32-bit servers running Windows 2000 SP4 or Windows Server 2003 |
| A5158-69001 | Single port Tachyon TL PCI 2x fiber channel adapter |
| A5158A | 1Gbps Tachyon TL PCI 2x Fiber Channel (FC) adapter - Single channel, short wave - Has SC connectors |
| A5158AR | 1Gbps Tachyon TL PCI 2x Fiber Channel (FC) adapter - Single channel, short wave - Has SC connectors |
| 電源 | |
| 0950-4294 | Processor power supply (McPod II) - DC to DC converter module with power supply cable (12V DC in, 1.5V DC at 100A out) |
| 0950-4621 | Hot-swap redundant power supply - 650W |
| 1253-8007 | Power distribution control assembly (PDCA) in-line connector - 200-240VAC, 60/63amp, 3-phase, 4-wire |
| 1253-8008 | Power distribution control assembly (PDCA) in-line connector - 200-240VAC, 30/32amp, 3 phase, 5-wire |
| 289564-001 | Processor Power Module (PPM) - 12V, 0.81A |
| 292237-001 | Power Supply |
| 292718-001 | Processor Power Module (PPM) - 12V, 0.81A |
|
537171-001 325709-001 |
AC power adapter (50 Watt) - 100-240VAC input, +12VDC outputAC power adapter (50 Watt) - 100-240VAC input, +12VDC output |
| A5201-00555 | 48V distribution to cell board bus bar |
| A5201-69008 | Power distribution control assembly - 200-240VAC, 60amp, 3 phase, 5-wire, phase to neutral |
| A5201-69009 | Power distribution control assembly - 200-240VAC, 100amp, 3 phase, 4-wire, phase to phase |
| A5201-69015 | Power supply 200-240VAC - 3 phase 4 wires, phase to phase, includes cord and plug (Power Distribution Control Assembly) |
| A5201-69016 | Power distribution control assembly - 200-240VAC, 60amp, 3 phase, 5-wire, phase to neutral - Includes power cord, plug, and receptacle |
| A5201-69025 | Front end power system assembly |
| A5201-69026 | Power supply assembly |
| A5201-69027 | Power distribution control assembly - 200-240VAC, 63amp, 3 phase, 4-wire, phase to phase - Includes power cord, plug, and receptacle |
| A5201-69028 | Power distribution control assembly - 200-240VAC, 32amp, 3 phase, 5-wire, phase to neutral - Includes power cord, plug, and receptacle |
| A5201-69203 | Backplane power module |
| 穩壓模塊 | |
| 0950-3821 | Master DC-DC converter - One required for each processor |
| 0950-3822 | Slave DC-DC converter - At least one required for each processor |
| 0950-4462 | Voltage regulator module (VRM) 9.0 - 1.2 to 1.8-volts capacity |
| 0950-4515 | Voltage regulator module (VRM) 8.5 - 2.5 to 3.3-volts |
| 0950-4653 | Voltage regulator module (VRM) 8.5 - 2.5 to 3.3-volts |
| 0950-4654 | Voltage regulator module (VRM) 9.0 - 1.2 to 1.8-volts capacity |
| 0950-4741 | Voltage regulator module (VRM) - DC to DC, programmable, 48 Volt DC (VDC) |
| 1252-6520 | High voltage differential/fast wide differential SCSI internal terminator - Has shielded, low profile 68 pin high density (M) connector with thumbscrews |
| 電池 | |
| 1400-2112 | Single board computer hub (SBCH) 3V battery retainer |
| 1420-0386 | 3.0V battery - 250mAh, lithium coin cell battery - Type CR2330 or equivalent - Not rechargeable - Used on the cell board |
| 1420-0862 | 3.0V battery - 1.3Ah, photo lithium (LiMnO2) cell - Type CR123A or equivalent - Not rechargeable - Used on the single board computer hub (SBCH) |
| 307132-001 | 3.6V battery pack assembly - 500mAh nickel metal hydride (NiMH) - Oval shaped, 12.5mm (0.5in) high, 38mm (1.5in) wide, and 77mm (3.0in) long |
|
319603-001 153099-001 |
Real-time clock (RTC) battery (CR2032) - 3.0V lithium disc cell, 220mAh, 20mm diameter, 3.2mm height |
| 光驅 | |
| 397931-001 | IDE CD-ROM optical drive - 48X read |
| 5187-2634 | IDE DVD+R/+RW drive (Carbon Black) - 4X |
| 風扇 | |
| 289562-001 | I/O module fan - 92mm (3.6in) long |
| 301017-001 | Fan assembly - 120mm (4.7in) long |
| A5201-04035 | I/O fan module - Includes fan, finger guard, mounting bracket, cable, and operational, caution, and fuse labels |
| A5201-04072 | I/O fan module - Includes fan, finger guard, mounting bracket, cable, and operational, caution, and fuse labels |
| A5201-62048 | Blower module - Includes one blower and mounter hardware - Mounts on top of the chassis |
| 導軌 | |
| 292230-001 | Rackmount hardware kit - Includes rails and cable management arm |
| 292231-001 | Tower-to-Rack conversion kit |
| 線纜 | |
| 1005-0624 | Fiber optic loopback cable for 50um multimode short wave - SC connectors - 2m (6.6ft) long |
| 163353-001 | Signal cable kit - Includes IDE ribbon (40-position), floppy data ribbon, and signal ribbon cable |
| 263894-002 | Fiber-optic short wave multimode interface cable - 50um core, 125um cladding - LC and SC connectors - 2m (6.6ft) long |
| 263895-002 | Fiber-optic short wave multimode interface cable - 50um core, 125um cladding - LC connectors - 2m (6.6ft) long |
| 263895-004 | Fiber-optic short wave multimode interface cable - 50um core, 125um cladding - LC connectors - 15m (49ft) long |
| 263895-006 | Fiber-optic short wave multimode interface cable - 50um core, 125um cladding - LC connectors - 50m (164ft) long |
| 292232-001 | Hot-plug SCSI point-to-point cable |
| 346967-001 | VGA monitor cable |
|
353888-001 5183-2672 |
SPS-CA 2M DIFF SCSI TCT SPS-CA 2M DIFF SCSI TCT |
| 413138-001 | DDR 4X copper cable - 10.0m (33.3ft) long |
| 413290-001 | SCSI interface cable with thumbscrews on ends - 68 pin high density (M) to 68 pin high density (M) - 0.5m (1.6ft) long |
| 413291-001 | Low Voltage Differential SCSI (LVDS) interface cable with thumbscrews on both ends - 68-pin high density (M) to 68-pin high density (M), 90 ohms , 1.0m (3.3ft) long |
| 413292-001 | SCSI interface cable with thumbscrews on both ends - 68-pin high density (M) to 68-pin high density (M) - 2.5m (8.2ft) long |
| 413293-001 | SCSI interface cable with thumbscrews on both ends - 68-pin high density (M) to 68-pin high density (M) - 128 ohms - 5.0m (16ft) long |
| 413296-001 | SCSI interface cable with thumbscrews on both ends - 68-pin very high density (M) to 68-pin high density (M) - 90 ohms - 2.5m (8.2ft) long |
| 413297-001 | SCSI interface cable with thumbscrews on both ends - 68-pin very high density (M) to 68-pin high density (M) - 90 ohms - 5.0m (16ft) long |
| 413298-001 | SCSI interface cable with thumbscrews on both ends - 68-pin very high density (M) to 68-pin high density (M) - 90 ohms - 10.0m (33ft) long |
| 413299-001 | SCSI interface cable with thumbscrews on both ends - 68-pin very high density (M) to 68-pin very high density (M) - 128 ohms - 2.0m (6.6ft) long |
| 413300-001 | SCSI cable - 10.0m (32.8ft) long, Very High Density Thumb Screw (VHDTS68) commector, male-to-male |
| 5012-8315 | Multimode Fiber (MMF) optic, LC (Lucent connector) cable - 200m (656.1ft) long |
| 5012-8320 | SCSI interface cable with thumbscrews on both ends - 68-pin very high density (M) to 68-pin very high density (M) - 128 ohms - 0.5m (1.6ft) long |
| 5012-8326 | SCSI cable - 5.0m (16.4ft) long |
| 5012-8327 | SCSI cable - 10.0m (32.8ft) long, VHDTS68 commector, male-to-male, multimode |
| 5012-8331 | Multimode Fiber (MMF) optic, LC (Lucent connector) cable - 2m (6.6ft) long |
| 5012-8332 | SCSI interface cable with thumbscrews on both ends - 50-pin high density (M) to 68-pin high density (M) - 2.0m (6.6ft) long |
| 5012-8337 | SCSI interface cable with thumbscrews on both ends - 68-pin very high density (M) to 68-pin high density (M), 90 ohms, 1.0m (3.3ft) long |
| 5012-8342 | SCSI interface cable with thumbscrews on both ends - 68 pin high density (M) to 68 pin high density (M) - 10.0m (33ft) long |
| 5063-1214 | SCSI interface cable - 50-pin low density (M) bail lock to 68-pin high density (M) thumbscrew - 1.0m (3.3ft) long |
| 5063-1334 | V.35 DTE cable loopback hood |
| 5065-0021 | SCSI interface cable with thumbscrews on both ends - 68-pin very high density (M) to 68-pin very high density (M) - 128 ohms - 5.0m (16ft) long |
| 5065-0022 | SCSI interface cable with thumbscrews on both ends - 68-pin very high density (M) to 68-pin very high density (M) - 128 ohms - 10.0m (33ft) long |
| 5065-0070 | High Voltage Differential SCSI interface cable with thumbscrews on both ends and inline termination - 68-pin very high density (M) to 68-pin high density (M) - 5.0m (16.4ft) long |
| 5065-0081 | High Voltage Differential SCSI interface cable with thumbscrews on both ends and inline termination - 68-pin very high density (M) to 68-pin high density (M) - 10.0m (32.8ft) long |
| 5065-5104 | Fiber-optic short wave multimode interface cable - 50um core, 125um cladding - LC connectors - 200m (656ft) long |
| 5181-7705 | SCSI interface cable with thumbscrews on both ends - 50-pin high density (M) to 68-pin high density (M) - 1.0m (3.3ft) long |
| 5181-7708 | SCSI interface cable with thumbscrews on both ends - 68-pin high density (M) to 50-pin high density (M) - 5.0m (16ft) long |
| 5183-2668 | SCSI interface cable with thumbscrews on both ends - 50-pin high density (M) to 68-pin very high density (M) - 1.0m (3.3ft) long |
| 5183-2669 | SCSI interface cable with thumbscrews on both ends - 50-pin high density (M) to 68-pin very high density (M) - 2.5m (8.2ft) long |
| 5183-2682 | SCSI interface cable with thumbscrews on both ends - Has 68-pin high density (M) connectors - 20.0m (65.6ft) long |
| 5183-2687 | Ethernet Cable - 7.6m (25ft) CAT5 Male-Male |
| 5183-2688 | Ethernet corssover cable - 7.6m (25ft) long with RJ-45 connectors at each end |
| 5184-0874 | Power cord - 2.0m (6.6ft) long (For 220VAC in Europe) - For use with the 220/240VAC Vacuum |
| 5184-0875 | Power cord - 2.0m (6.6ft) long (For 240VAC in the United Kingdom) - For use with the 220/240VAC Vacuum |
| 8120-3996 | Power cord (Black) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (for 220V in the United States and Canada) |
| 8120-6712 | Power cord (Black) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (for 240V in Israel) |
| 8120-6869 | Power cord (Flint Gray) - 3-wire, 2.3m (7.5ft) long - Has straight (F) receptacle (for 220V in Argentina) |
| 8120-8705 | Power cord (Mint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (for 240V in the UK, Hong Kong, Singapore, and Malaysia) |
| 8120-8871 | Power cord (Black) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (for 220V in Thailand, Cambodia, Vietnam, and the Philippines) |
| 8121-0673 | Power cord (Black) - 3-wire, 2.5m (8.2ft) long - Has straight (F) C13 receptacle (Thailand) |
| 8121-0730 | Power cord (Black) - 18 AWG, three conductor, 1.9m (75in) long - Has straight (F) C13 receptacle (For 240V in Australia) |
| 8121-0731 | Power cord (Black) - 18 AWG, three conductor, 1.9m (75in) long - Has straight (F) C13 receptacle (For 220V in Europe) |
| 8121-0739 | Power cord (Black) - 18 AWG, three conductor, 1.9m (75in) long - Has straight (F) C13 receptacle (For 240V in Singapore, Hong Kong and the U.K.) |
| 8121-0740 | Power cord (Black) - 3-wire, 18 AWG, 1.9m (75in) long - Has straight (F) C13 receptacle (for 120V in the USA, Canada, Mexico, and Taiwan) |
| A4700-67052 | RS232 node to workstation cable 15.24m (50ft) long |
| A5201-00232 | Lossey Pad Reo Cable |
| A5201-04027 | Backplane to backplane flex cable - 12.7cm (5in) long - Includes attaching hardware |
| A5201-04039 | Backplane to backplane flex cable, 5.1cm (2in) long - Includes attaching hardware |
| A5201-63018 | Temp. sensor cable with sensor - Located under the cell boards |
| A5201-63021 | Utilities board to left system backplane clock cable |
| A5201-63028 | House keeping power board to utilities connector board cable |
| A5201-63045 | Front end power supply power control and sensor cable |
| A5201-63046 | Front end power supply to power filter cable |
| A5201-63049 |
Cell OL LED assembly cable |
| A5201-63052 | Utilities-1 cable |
| A5201-63053 | Utilities-2 cable |
| A5201-63054 | House keeping power to utilities connector board cable |
| A5201-63058 | Cable assembly - USBE, unshielded |
| A5201-63066 | Ring I/O adapter cable, 2.1m (82in) long |
| A5201-63071 | Cable - Front End Processors (FEPS) to HUCB, ROHS |
| A5201-63073 | 48VDC board to left system backplane sensor cable |
| A5201-63074 | I/O LED assembly cable - On-line addition/deletion |
| A5201-63076 | I/O to utilities cable |
| A5201-63078 | Cable - HK filter to HLSB |
| A5201-63080 | Single board computer hub to single board computer Com1 and Com2 cables |
| A5201-63081 | Front display panel cable |
| A5201-63083 | House keeping power to master I/O backplane rear cable |
| A5201-63085 | Cable - Filter to Front End Processors (FEPS) |
| A5201-63086 | 5V external feed through filter cable |
| A5201-63087 | Cable - Cell OL Light-emitting Diodes (LED) |
| A5201-63088 | Front EMI cover sensor cable |
| A5201-63089 | 48VDC power board to I/O feed cable |
| A5201-63092 | Cable - Power Harness to HIOPS |
| A5201-63093 | Cable assembly - USBE, unshielded |
| A5201-63094 | On-Off switch to front power board cable |
| A5201-63097 | Front and rear display panel to bulkhead connector cable |
| A5201-63098 | Front door to chassis ground cable |
| A5201-63100 | Utilities board to master I/O backplane 500MHz clock cable |
| A5201-63101 | Utilities board to left system backplane clock cable |
| A5201-63103 | Backplane to backplane flex cable - 12.7cm (5in) long - Includes attaching hardware |
| A5201-63104 | Backplane to backplane flex cable - 20.3cm (8in) long - Includes attaching hardware |
| A5201-63105 | Phone cord - 7.6m (25ft) long - For SMS modem |
| A5201-63111 | 48VDC sensor-to-utilities control board sensor cable |
|
A6144-63008 24540-80011 |
RS-232C serial cable - 25-pin (M) to 9-pin (F) - 3.0m (9.8ft) long |
| 機殼 | |
| A4856AZ | 12 slot PCI I/O card chassis for rack system expansion cabinet |
| A4901A | Rack System/E33 cabinet - 1.6m 19in 33U rack cabinet - Has vented top, vented rear door, side cover panels, front/back anti-tip foot, castors, and leveling feet |
| A4901AR | Rack System/E33 cabinet - 1.6m 19in 33U rack cabinet - Has vented top, vented rear door, side cover panels, front/back anti-tip foot, castors, and leveling feet |
| A4902A | Rack System/E41 cabinet - 1.95m 19in 41U rack cabinet - Has vented top, vented rear door, side cover panels, front/back anti-tip foot, castors, leveling feet |
| A4902AR | Rack System/E41 cabinet - 1.95m 19in 41U rack cabinet - Has vented top, vented rear door, side cover panels, front/back anti-tip foot, castors, leveling feet |
| A5201-62029 | Rear blower housing - Does not include the blower |
| A5201-62030 | Front blower housing - Does not include the blower |
| A5201-62051 | Rear blower housing - Does not include the blower |
| A5201-67003 | Utility chassis - Includes the utility connector board (UCB) |
| A5201-67069 | Utility chassis - Includes the utility connector board (UCB) |
| 其它 | |
| 0181-0609 | Electrolytic capacitor - Fixed value, 2200uF, +-20%, 10V |
| 0380-2057 | STANDOFF-HEX, 188-IN-LG .187in-A/F CRS, qty 2 installed per D-sub connector on HUCB |
| 0380-4735 | Hex standoff - 16mm long, M3.0 x 0.5 thread - Stainless steel |
| 0403-0549 | Rubber bumper for the front and rear doors |
| 0515-0380 | Pan head machine screw - M4.0 x 0.7, 10mm long - Used to attach the adjustable cabinet feet |
| 0515-0430 | Pan head machine screw - M3.0 x 0.5, 6mm long, Torx recess |
| 0515-0441 | Screw - MSM6, 12mm (0.47in) |
| 0515-0670 | Screw-machine Kit |
| 0515-0824 | Socket head cap screw - M10 x 1.5, 80mm long |
| 0515-2991 | Pan head machine screw - M5.0 x 0.8, 10mm long |
| 0515-3210 | Screw - Cabinet attach M6 x 10mm (0.39in) |
| 0515-4519 | Screw-machine assembly - M3 x 0 screws |
| 0535-0060 | NUT - Wing M4 |
| 0590-1153 | Nut - THD, insert |
| 0590-2023 | Threaded insert-Nut - M10.0, one piece |
| 0590-2555 | Threaded insert-SDFT M4 x 0.7mm |
| 0960-1074 | 56K support modem |
| 0960-2197 | SMS Modem board - 56K, V.92/V.44 data/fax |
| 0960-2244 | Removable SCSI jumper |
| 1150-5070 | Vacuum, 110VAC with US power cord |
| 1150-5071 | Vacuum, 220/240VAC without power cord |
| 1200-4446 | Dust cover for the backplane flex cable socket |
| 122759-001 | Hard drive filler (blank) - 1-inch wide - Fills an empty hard drive slot to provide proper air flow for cooling |
| 1400-1154 | Cable Tie - 0.062in to 1.25in diameter, 0.10in wide |
| 1400-2150 | Cable Tie - 0.087in diameter, 0.9in wide |
| 1492-0310 | Wheel and caster assembly - 3in diameter |
| 1819-0183 | Enhanced keyboard (Carbon Black) - For use in the United States |
| 2090-0913 | 15-inch color monitor - For SMS stand-alone |
| 216104-001 | Cover kit - Includes hood panel (tower model only), access panel, and top panel |
| 2200-1259 | Screw - Mach, 4-40 |
| 229842-001 | LCD display assembly - Includes hinges and latch - Does not include keyboard or rack mount sliders |
| 230978-001 | Keyboard assembly (Carbon Black) - Includes programmable hot keys, trackball assembly, and interface cable assembly |
| 231212-001 | Blank media bezel - For removable media slot |
| 249923-001 | Power supply filler blank |
| 250843-001 | Plastics kit - Includes PCI retainer, door snap receptacles, option board retainers, PCI board guides, feet, and retainer clips with adhesive |
| 262171-001 | Drive Cage with SCSI Simplex Board |
| 289549-001 | Air baffle - Used for directing air flow from fan |
| 292236-001 | Power switch |
| 311059-001 | Enhanced PS-2 keyboard (Carbon Black), 6-pin mini-DIN connector - United States |
| 3150-0785 | Vacuum filter, 0.03 micron |
| 324705-001 | L1925 Monitor return kit - For returning the monitor for repair or replacement - For use in Europe ONLY |
| 324751-001 | L1925 19-inch LCD flat panel monitor (Carbonite case with Silver bezel) - Has one 15-pin VGA, and one 29-pin DVI-I input connectors |
| 333362-001 | Monitor L1730 A+D 2T TCO-P |
|
333362-101 349000-101 |
Monitor L1730 A+D 2T TCO-B |
| 333363-001 | Compaq L1530 15.0-inch TFT Liquid Crystal Display (LCD) - 100-240VAC, 50-60Hz, requires separate AC power cord - Has 15-pin female D-sub VGA connector and Digital Video Interface (DVI-D) connector |
| 333363-101 | Compaq L1530 15.0-inch TFT Liquid Crystal Display (LCD) - 100-240VAC, 50-60Hz, requires separate AC power cord - Has 15-pin female D-sub VGA connector and Digital Video Interface (DVI-D) connector |
| 333859-001 | Return kit |
| 333860-001 | Return kit |
| 336604-001 | PC foot stand with screws - Allows unit to sit vertically for a smaller footprint |
| 350513-001 | Tray Kit - Keyboard and Display Rack Mount Installation |
| 367229-002 | HP L1955 19-inch LCD display (Carbonite Black and Silver) - TCO-03, (Serial number format xxKxxxxxxx) |
| 370451-001 | Thin client base T5510 800MHZ 32/128 bit |
| 375692-001 | DVI adapter dongle - DVI (F) to DVI (M) |
| 399397-001 | 1.44MB, 3.5-inch floppy disk drive (Carbon Black) - Includes bottom cover |
| 413301-001 | Active Wide Single-Ended SCSI terminator - With 68-pin high density (M) connector with thumbscrews - |
| 435302-051 | PS/2 Windows keyboard assembly (Silver and Carbonite Black) - Has attached 1.8m (6.0ft) cable with 6-pin mini-DIN connector (French) |
| 5001-7430 | Empty I/O slot cover |
| 5021-1125 | Cable Tie-wrap - Velcro, black cable bundles to chassis, Cable management |
| 5021-1186 | Key Lock Set - X Peak |
| 5065-5113 | Loopback connector - RJ-45 - Used on empty CIO communications port |
| 5169-0431 | Ziff Socket Cover Installation Kit |
|
537749-001 323615-001 |
HP USB two-button scroll wheel optical mouse (Jack Black) - Has 1.8m (6.0 feet) long cable with USB type (A) connector |
| 5697-4895 | Carrier handle assembly (Black) |
| 576104-001 | HP LA1751G 17-inch LCD monitor (Two-tone) |
| 6960-0311 | DuPont Nomex Insulator Cover |
| 9135-5258 | High current/high voltage AC input filter |
| 9300-1408 | Disposable ESD ground wrist strap |
| 9300-2481 | Static wrist strap with 3.7m (12ft) cord |
| A1658-62024 | High Voltage Differential/Fast Wide Differential SCSI terminator - 68-pin high density (M) connector with thumbscrews - |
| A3024-80004 | Disposable Electrostatic Discharge (ESD) Kit |
| A3639-04024 | PCI card separator/extractor with light pipe |
| A3726-30001 | Torque screw driver with range from 1 to 30 in/lbs |
| A3726-30002 | Socket drive adapter - Adapts 1/4 hex drive to 1/4 socket drive |
| A3726-30003 | 6in long hex extension - Has 1/4 hex drive at one end and 1/4 socket drive at other end |
| A4700-67073 | Fiber optic converter - Converts from SC duplex plug to 2.5mm bay |
|
A4856-69101 A4856AX |
PCI card cage assembly - Includes 12-slot I/O chassis, I/O board, I/O power board, and I/O backplane |
| A4856A | HP 9000 Server 12-slot PCI Chassis - For Superdome cabinet |
| A5201-00064 | Blank Filler Panel - Chassis, Mfab EMI |
| A5201-00076 | Mfab Panel Close-out |
| A5201-00144 | PCI chassis guide |
| A5201-00168 | I/O chassis mount support |
| A5201-00169 | Front cell board chamber EMI filler panel |
| A5201-00238 | Panel - For close-out top |
| A5201-00246 | EMI panel cable exit filler panel |
| A5201-00258 | Front door latch keeper |
| A5201-00259 | Front door hinge mounting bracket |
| A5201-00261 | Middle back kicker cover |
| A5201-00268 | Blower side panel lock bracket |
| A5201-00280 | Left back kicker cover |
| A5201-00281 | Right back kicker cover |
| A5201-00331 | Mfba Cabinet Attach Vertical |
| A5201-00333 | Mfba Cabinet Attach Horizontal |
| A5201-00335 | Mfba Cabinet Attach Rear |
| A5201-00356 | Front inner frame air filter |
| A5201-00371 | Rear door air filter |
| A5201-00397 | Front door air filter |
| A5201-00422 | Rear cell backplane chamber EMI filler panel |
| A5201-00440 | Power distibution control assembly (PDCA) slot filler panel |
| A5201-00467 | MFAB Bracket Cabinet Attach |
| A5201-00476 | Power mount fan cover |
| A5201-00510 | Front door opening limiter bracket - Limits how far the door can open |
| A5201-00511 | Mfba Air Filter - Front door, 5 pieces Kit |
| A5201-00532 | EMI panel kit - Includes Mfab and Honeycomb panels, top and bottom |
| A5201-00533 | Front and rear bulkhead support |
| A5201-00537 | Cell backplane cover assembly - ASIC |
| A5201-00539 | DNA backing plate - For EMI frame |
| A5201-00552 | Strain relief for the system backplane to ring I/O adapter cable |
| A5201-00556 | Side panel support bracket |
| A5201-00558 | Left back kicker (Graphite color) |
| A5201-00559 | Middle back kicker (Graphite color) |
| A5201-00560 | Right back kicker (Graphite color) |
| A5201-00561 | Rear door latch catch |
| A5201-04010 | I/O chassis support tray assembly - Includes tray, left and right rails, RFI strips, and power filter |
| A5201-04017 | Rear control panel bezel kit |
| A5201-04018 | Blower front cover panel |
| A5201-04019 | Blower side cover panel |
| A5201-04020 | Cabinet side cover panel without vertical lip |
| A5201-04022 | Rear door assembly - Includes door, latch catch, stiffeners, brackets, and RFI strips |
| A5201-04024 | Rear door hinge |
| A5201-04025 | Blower rear cover panel |
| A5201-04031 | Cabinet side cover panel with vertical lip |
| A5201-04034 | Power distribution control assembly (PDCA) mount - Enclosure for two PDCA`s and 10 cable groomers |
| A5201-04041 | Front door metal frame |
| A5201-04042 | Horizontal mounting plate - Attaches to the utilities tray and card cage - Includes HUCB |
| A5201-04043 | Cabinet left side cover panel with IOX cable access cutouts |
| A5201-04045 | Cabinet right side cover panel with IOX cable access cutouts |
| A5201-04050 | Cable exit EMI panel - Include cable clamps |
| A5201-04063 | REO duct - Attaches to non-power side - Includes upper and lower cover |
| A5201-04076 | Rear door assembly (GzVDu#M3Hkc#VYU#PFi#WWnO..raphite color) - With bracket |
| A5201-04078 | Front control panel bezel kit |
| A5201-04080 | Front control panel cosmetic kit (Graphite color) |
| A5201-04081 | Front door metal frame (Carbon color) |
| A5201-04083 | I/O fan mounting frame |
| A5201-04084 | Blower side panel (Carbon color) |
| A5201-04085 | Cabinet right side panel (Graphite color) - With IOX cable access cutouts |
| A5201-04086 | Cabinet side panel (Graphite color) - Without vertical lip |
| A5201-04087 | Cabinet left side panel (Graphite color) - With IOX cable access cutouts |
| A5201-04088 | Blower front panel (Carbon color) |
| A5201-04089 | Blower rear panel (Carbon color) |
| A5201-04090 | Bottom front door (Graphite color) |
| A5201-40005 | Front door top section - Includes latch and key lock |
| A5201-40006 | Front door bottom section |
| A5201-40045 | Front door top section (Graphite color) - Includes latch and key lock |
| A5201-62034 | Mfba Kit Cabinet Interconnect |
| A5201-62050 | Halfdome base assembly - Includes LCD module and main cabinet 48V distribution bus |
| A5201-63075 | I/O fan control power harness |
| A5201-63077 | Main blower control power harness |
| A5201-67001 | Master I/O backplane |
| A5201-67002 | Front and rear panel board (FPB2) |
| A5201-67065 | Cabinet on-line board |
| A5201-67067 | 48V filter assembly - Includes attaching hardware |
| A5201-67068 | PCI card cage label kit |
| A5201-68001 | Jumper board upper loop back, F015 to F415 |
| A5201-68002 | Jumper board lower loop back, F005 to F405 |
| A5201-68003 | DIMM module installer tool |
| A5201-68004 | Anti-static mat, 24in x 36in with grounding strap |
| A5201-68006 | Torque wrench with range from 30 to 150 in/lbs, 3/8in drive |
| A5201-68007 | Drive - Torx 1/4, T-20 screw |
| A5201-68008 | Drive - Hexagonal, 10mm (0.39in) |
| A5201-68009 | Drive - Hexagonal, 19mm (0.74in) |
| A5201-68010 | Drive - Bit Socket, T-15 Torx, 1/4 |
| A5201-68011 | Drive / Extension 6, 3/8 |
| A5201-68013 | Cell module lifting tool |
| A5201-68017 | DIMM module removal tool |
|
A5201-69329 A5201-62329 |
Module assembly - Includes System Bus Controller (SBC) and single board computer hub (SBCH4) |
